This easily fitted park distance warning system assists you when parking and manoeuvring. An audible signal indicates that it is ready for operation when you select reverse gear. The parking aid can be manually activated by the button supplied e.g. when parking forwards in a parking space. The system switches off after approx. 10 seconds if no activity is detected. The intervals between the acoustic warnings get shorter as the vehicle approaches an obstacle. The sensors can be painted over and can therefore be incorporated harmoniously and discreetly into the vehicle's overall appearance. Items supplied: control unit, four sensors, buzzer, switch, wiring, securing material, operating instructions, instruction sheet, fitting instructions (online) Front Parking Aid Kit for the following cars:
Audi
A3 & Cabrio 2017 onwards Q2 2017 "
Remarks: Acoustic feedback through sound generator
Remarks: Activated by engaging reverse gear or separate on/off switch
Remarks: Compact control unit
Remarks: Four sensors for optimal detection range
Remarks: Inconspicuous installation in front bumper
Remarks: Installation depth of sensors: 33 mm
Remarks: Measuring range: 0.30 m to 1.00 m
Remarks: Operating and fitting instructions specific to the vehicle
Remarks: Paintable sensors
Remarks: Self-diagnosis function
Remarks: The parking aid supports parking by acoustically showing distance.
Remarks: Visible sensor diameter: 23.5 mm
Remarks: Warning! Not for S line models.
Installation instruction: Please note that the installation time shown is an average value and can vary depending upon vehicle equipment and may take longer.

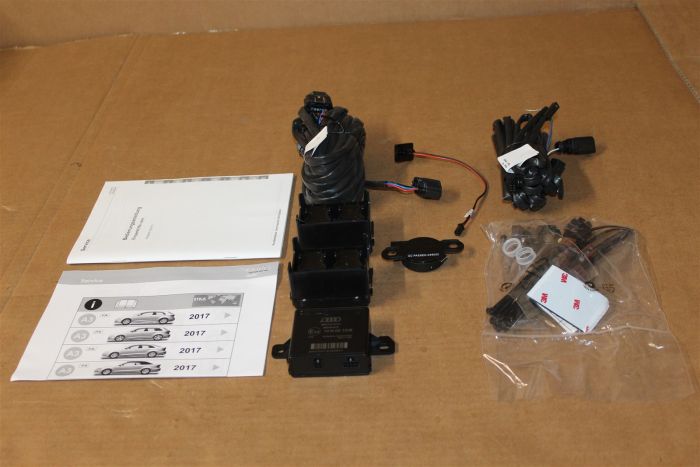

Contents: Control unit, 4 sensors, wiring harness, attachment material, switch, fitting instructions (online) and operating instructions (enclosed)
Technical features: 4 sensors
Technical features: Acoustic warning function
Technical features: Self-diagnosis function
Technical features: Sensors can be painted
Please ensure you have had your car professionally diagnosed and have checked that this item is compatible before ordering as this will arrive in a security sealed bag which once opened will render the item exempt from returns. This part will need to be fitted by a professional workshop.
Part number
Alternative part number(s)
8V0054630C
8V0 054 630C
